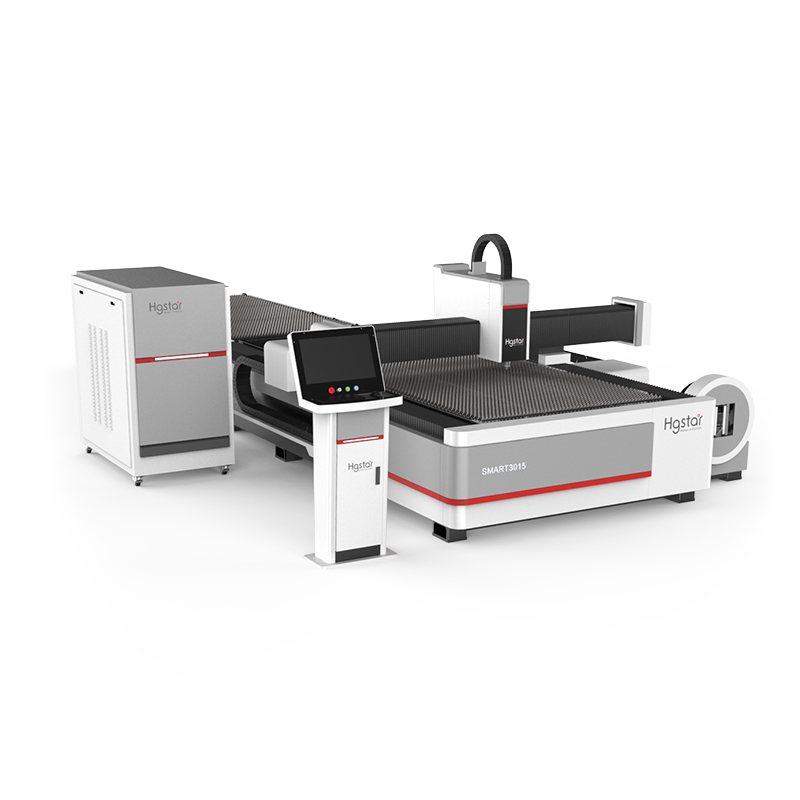

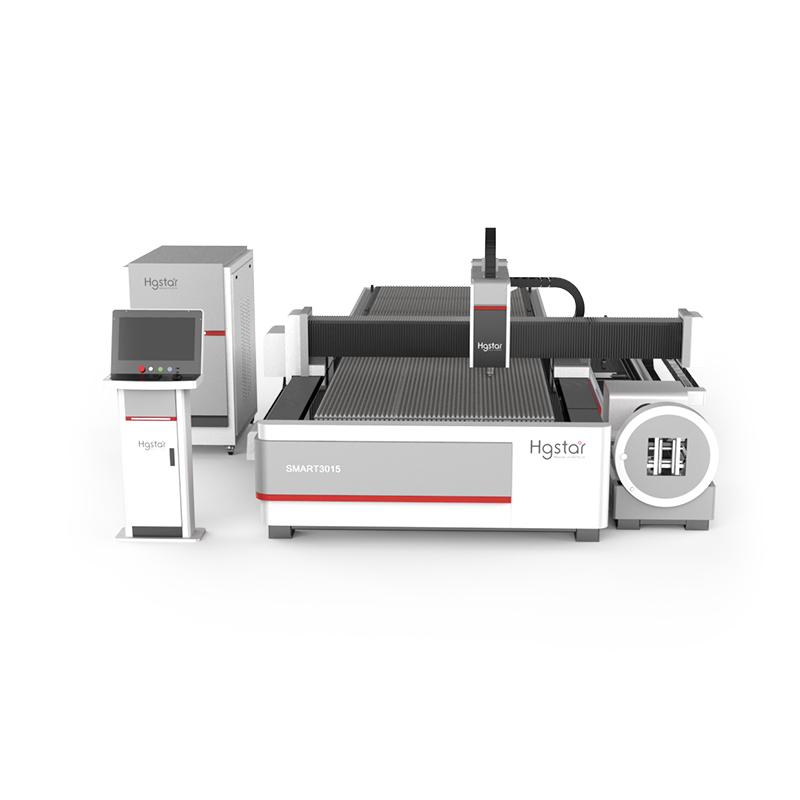

Станок для лазерной резки листов и труб 1000W-6000W

Model: Series

Category: Станок для лазерной резки листов и труб

Brand Name: HGSTAR

Laser power: 1000W-6000W

Uses: Серия Smart-t позволяет быстро резать листовой металл и трубы, что в основном используется в производстве фитнес-оборудования и мебели.

Отправить запрос

Description
Reviews (0)

　　Features and Benefits of sheet and tube laser cutting machine

1. In the sheet and tube laser cutting machine, a Raycus 1000 Watts laser device with stable performance is used; the key parts can last 100,000 hours.

2. A sophisticated CNC control system that can directly read.ai,.plt,.dxf,.lxd, and ug code and is simple to use;

3. Intelligent cutting head with auto-height adjustment for consistent focal length and cutting quality.

4. High precision transmission device imported from Japan that works flawlessly with the servo system, ensuring cutting precision and efficiency.

The SMART Plus-T series is an improved version of the SMART series capable of cutting most sheet metals, metal plates, metal tubes, and metal pipes. Saving more than half the cost of purchasing two types of machines, doubling production efficiency, and saving more than half the workshop space.

Metal tube cutting capacity is widely used in sports equipment, various types of pipe, water pipes, oil pipelines, and other industries; it can cut a wide range of special-shaped pipe materials, including round pipe, square pipe, rectangular pipe, oval pipe, and so on.

Metal sign, metal letter, metal kitchen ware, metal craft, sheet-metal work, and metal parts are all cut with an industrial laser metal cutting machine. Now is the best time to buy!

Sheet and tube laser cutting machine Parameter

Machine Model	SMART3015Plus – T
Sheet Cutting Area (L×W)	3050mm×1530mm
Tube Cutting size (L x dia.)	6030mm×220mm
Chuck size	Φ120/Φ230/Φ350
Laser Source	1000W – 6000W
CNC System	FSCUT 3000
Laser Cutting Head	BM111 F125mm
Max Moving Speed	80m/min, Acceleration is 1.0G
Position Accuracy (X and Y axis)	±0.02mm
Reposition Accuracy (X and Y axis)	±0.03mm
Power Supply Requirement	380V 50/60Hz 45KVA
Machine weight	≤6800 Kg
Appearance size	8800mm×3530mm×2100mm

Sheet and tube laser cutting machine Video

Features of Sheet and tube laser cutting machine

Dual Purpose and Cost-Effectiveness

Not only can the HGstar fiber laser cutting machine cut metal plates, but it can also cut metal pipes. It has a wide range of applications and can save up to 50% of available space, resulting in increased productivity.

Parallel switching platform

It makes use of a parallel switching platform as well as a bilateral drive matching sprocket chain. Its characteristics include stability, good rigidity, and high speed.High-speed parallel exchange platform design, simultaneous exchange of two worktables, stable and reliable transmission mode, shorter exchange time, and improved frequency converter.

Without Manual Focusing, Autofocus Laser Cutting Head

The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

Design of a pneumatic chuck

The front and rear chuck clamping design is easy to install, saves labor, and has no wear and tear. Ensure feeding stability and cutting accuracy; Automatic center adjustment, suitability for various pipes, and a high chuck rotation speed can all improve processing efficiency.
